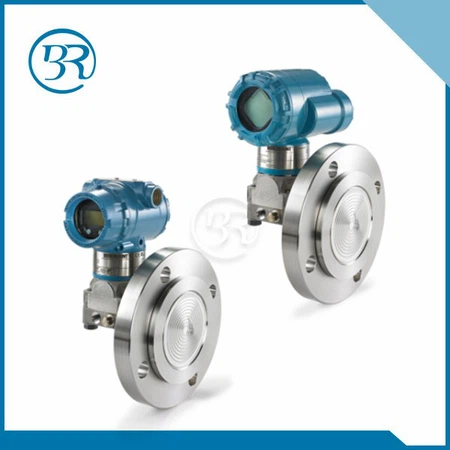

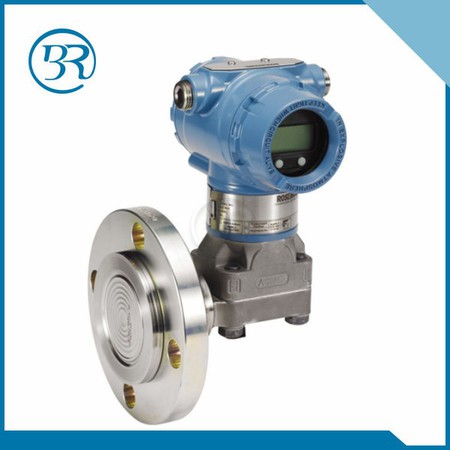

Rosemount Liquid Level Transmitter

Rosemount liquid level transmitter is a field installed temperature transmitter developed and manufactured by Emerson. When it works, the pressure is transferred from the medium to the filling fluid, which then transfers the pressure to the sensing diaphragm.  which is then converted into a 4-20 madc current signal output. Can communicate with each other through HART 475, through them to set and monitor. In addition, it also has a wide range of pressure, high precision, strong anti-interference ability, stable performance, good environmental adaptability, easy to use and other characteristics, can be used in a variety of extreme working environment.

• Work continuously for 5 years without adjustment,

• The temperature effect is negligible,

• The effect of static pressure is negligible.

• Influence ≤±0.03% after 100,000 consecutive unidirectional overpressure experiments,

• With perfect self-diagnosis function,

• Small and lightweight (standard type 5 kg),

• When the external pressure increases to a certain value by connecting the liquid diaphragm and the membrane box body, the liquid diaphragm can fully contact with the body, and the pressure transmitted by the silicone oil to the sensor will no longer increase with the increase of the external force, to achieve the protection of the sensor.

Rosemount liquid level transmitter is characterized by compact structure, strong, seismic. It is the extension and development of the pressure transmitter technology, according to the principle of linear relationship between the pressure produced by the liquid of different gravity at different heights, to achieve the accurate measurement and transmission of the volume, liquid height and weight of water, oil and paste.

Rosemount liquid level transmitter compared with other transmitters, the effect of static pressure is very outstanding. This requires the installation of the transmitter and the process interface to have quite high requirements, because the process interface for the flange type interface, can be directly butt with the tank, often used for measuring liquid level. Mainly used in chemical plant storage tank, biological engineering fermentation container, distillery fermentor (sanitary type), evaporator tank. Theoretically, without considering the range, the differential pressure transmitter can be used instead of the pressure transmitter, but the pressure transmitter cannot be used instead of the differential pressure transmitter.
